Komatsu PC40MR-2

$29,900

SOLD – Inquire about others

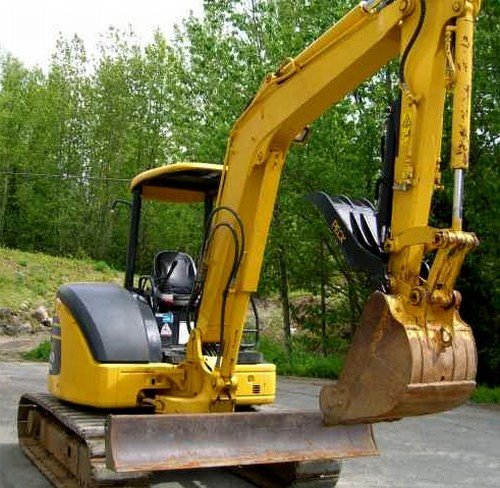

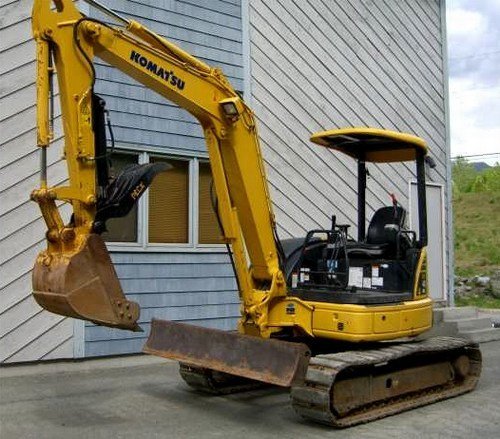

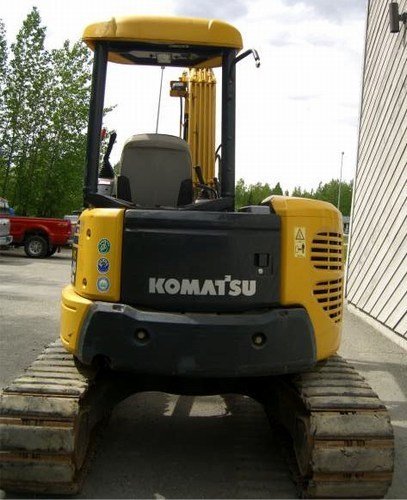

2004 KOMATSU PC40MR-2  Mini Excavator, 2010 hrs.

11,000#, blade, steel track with bolt on rubber pads is best of both worlds in track performance, swings 360 degrees with zero clearance and the boom offsets 90 to allow digging in tight situations, 10′ dig depth.  Late model and low hours with Certified ROPS canopy. New hydraulic thumb is installed. Great contractor machine. Famous Komatsu reliability and parts availability come with this machine.

Machine Details:

Overview:

  • Manufacturer: Komatsu
  • Model: PC40MR-2
  • Serial Number: 8639
  • Year: 2004
  • Hours: 1,930 hours on functional meter

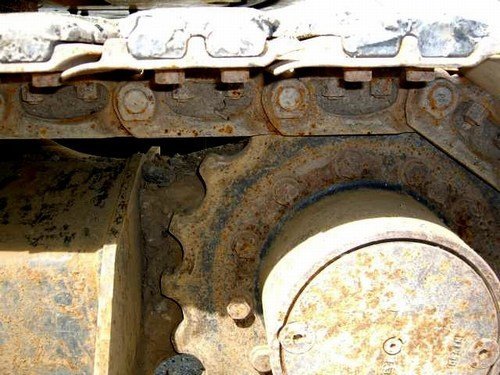

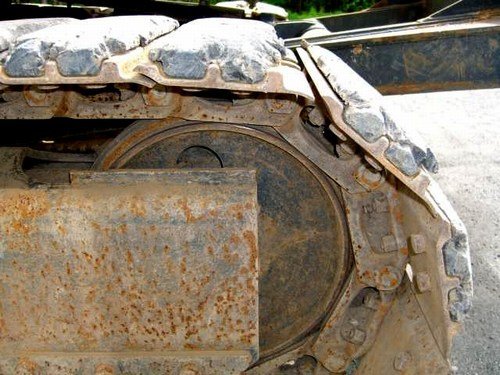

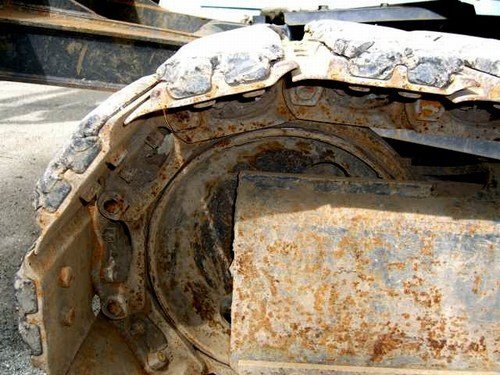

  • Tracks: 15-3/4” triple grouser
  • Net Horsepower: 39.1 @ 2350 rpm
  • Bucket: 20” wide
  • Stick: 56”
  • Operating Weight: Approx. 10,915 lbs
  • Dimensions: 17’ 8” L x 77.5” W x 102” H

Features:

  • 77.5” Blade

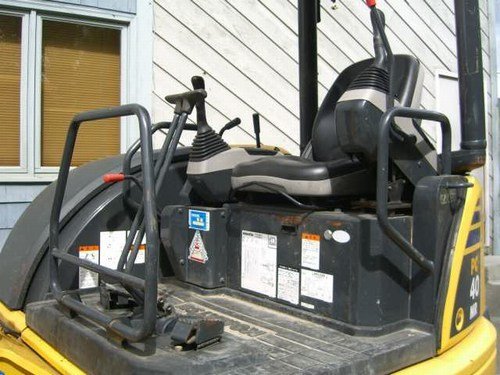

  • Two post ROPS canopy
  • Side swing boom

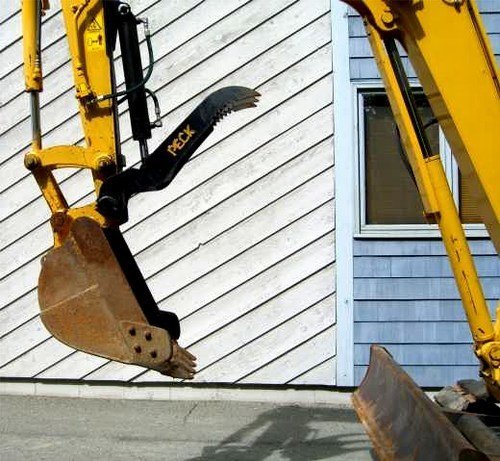

  • Thumb (hydraulic) and attachment piping
  • Work light on boom
  • Two speed travel – electronic switch
  • Komatsu CLSS Load Sensing System – guarantees power, speed and perfect control of all movements
  • Hydraulic servo-controls
  • Automatic shift down – automatically adjusts hydraulic travel motor to working conditions: maximum displacement for faster movements, minimum displacement for top drawbar pull.

Specifications:

  • Engine:
    • Model: Komatsu 4D88E
    • Fuel type: Diesel
    • Number of cylinders: 3
    • Rated output (NET): 39.1 HP @ 2350
  • Shoe/track width: 15.8 in
  • Ground Pressure: 4.0 psi
  • Overall track width (outside to outside): 77”
  • Travel speed: 1.7/2.9 mph (low/high)
  • Swing speed 9.0 rpm
  • Max Drawbar Pull: 9,435 lbs
  • Bucket Digging Force: 7,630 lbs
  • Max. Digging Reach: 19’ 3”
  • Max Dump Height: 12’ 8”
  • Max Digging Depth: 11’ 6”
